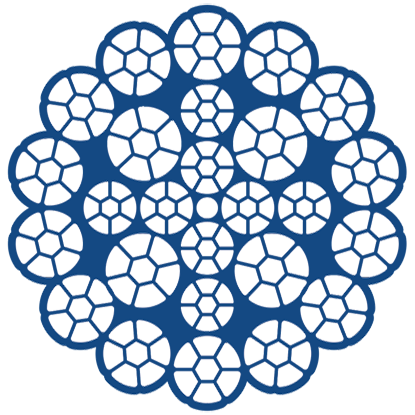

CelikFlex K267 PWRC - 26x7 ROTATION RESISTANT WIRE ROPES

Diameter Range: 10-36(mm)
Number of Wires: 182
Average Load Factor: 0.629
Average Bending Factor: 0.758

26x7 COMPACT		Minimum Breaking Load (kN) [According to Wire Tensile Strength]
Rope Diameter(mm)	Unit Weight (kg/m)	1570 [N/ ^mm2 ]	1770 [N/ ^mm2 ]	1960 [N/ ^mm2 ]	2160 [N/ ^mm2 ]
10	0.451	67	75	83	85
11	0.546	81	91	101	102
12	0.649	96	108	120	122
13	0.762	113	127	141	143
14	0.884	131	147	163	166
15	1,015	150	169	187	191
16	1,154	171	192	213	217
17	1,303	193	217	241	245
18	1,461	216	244	270	274
19	1,628	241	271	301	306
20	1,804	267	301	333	339
21	1,988	294	332	367	373
22	2,182	323	364	403	410
23	2,385	353	398	440	448
24	2,597	384	433	480	488
25	2,818	417	470	520	529
26	3,048	451	508	563	572
27	3,287	486	548	607	617
28	3,535	523	589	653	664
29	3,792	561	632	700	712
30	4,058	600	677	749	762
32	4,617	683	770	853	867
34	5,212	771	869	962
36	5,844	864	974	1079
